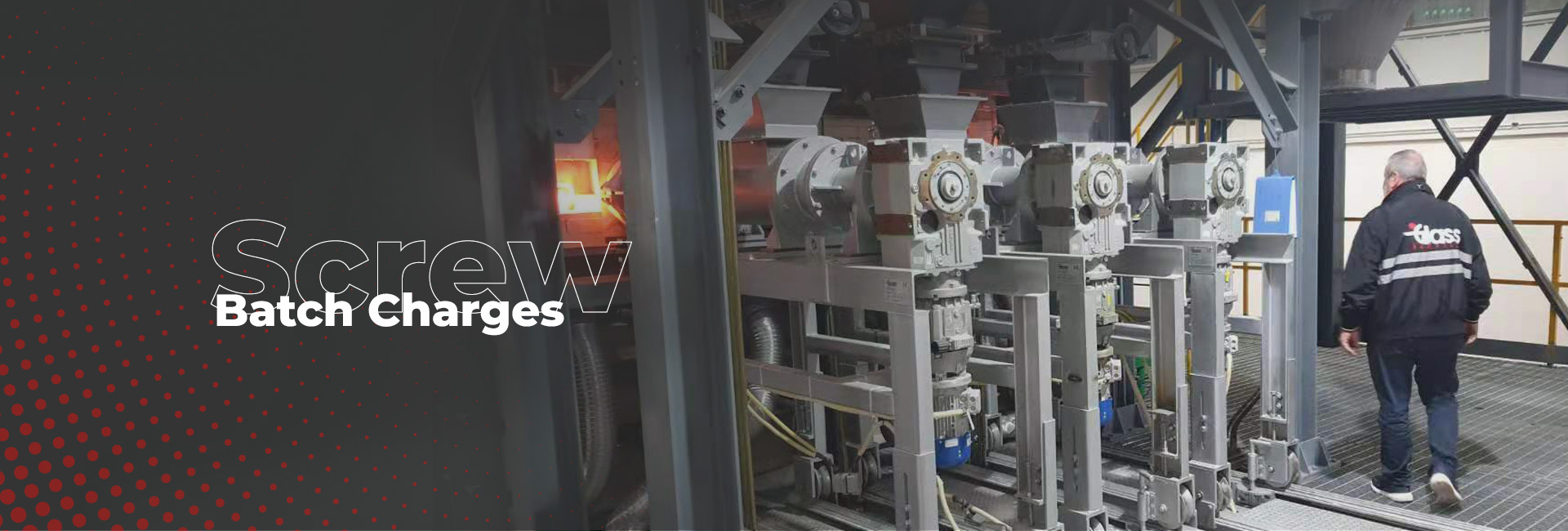

Screw Batch Charges
Increase the furnace pull/rate performance
Decrease the energy consumption
Reduce the furnace pollution dust carry over
Reduce the glass level oscillation
Reduce the NOx formation
The batch charger is one of the most important pieces of equipment installed in a glass furnace as it has an important influence on the performance of the furnace. Glass Service has developed a range of batch chargers including a screw batch charger.

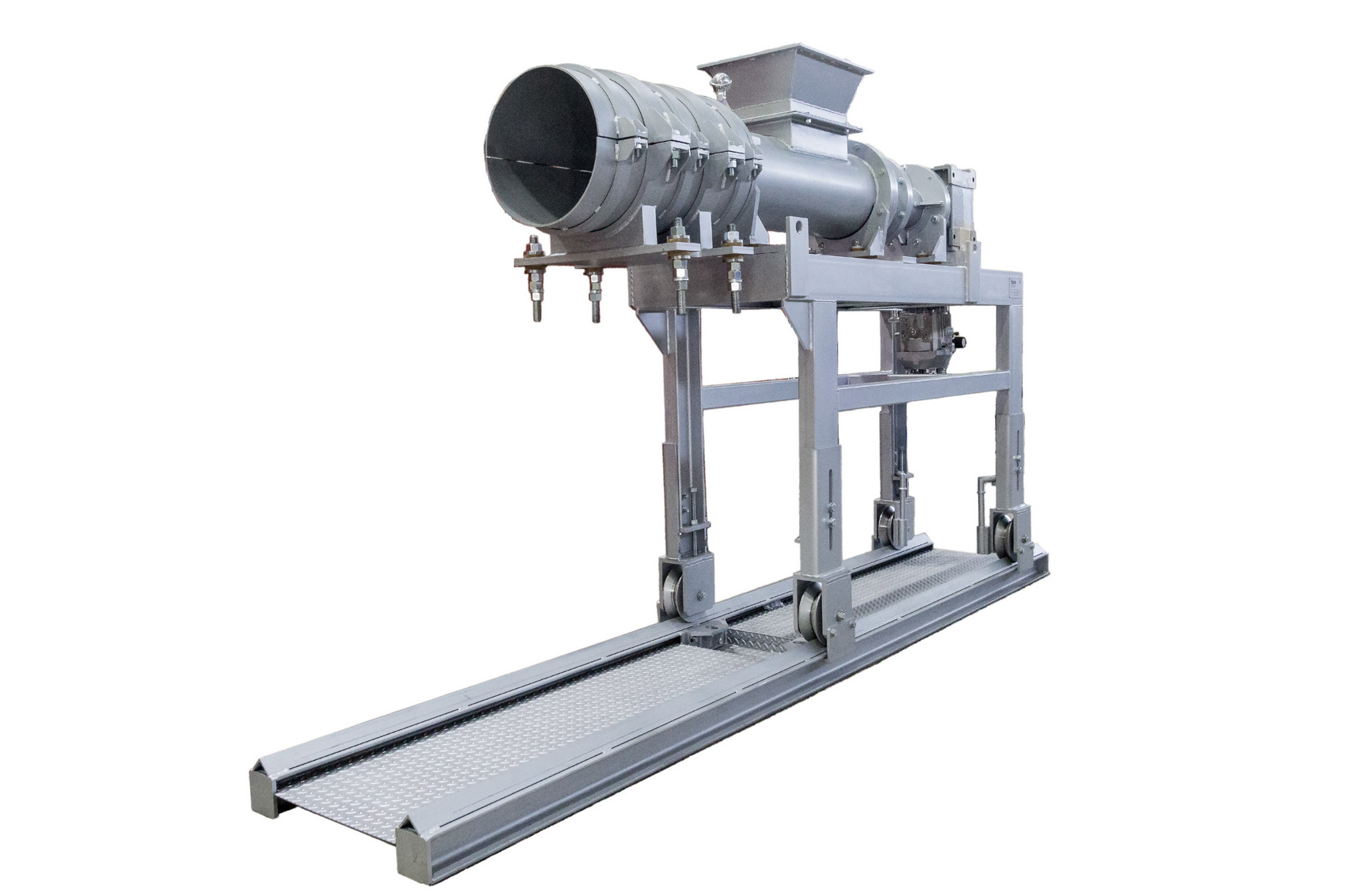

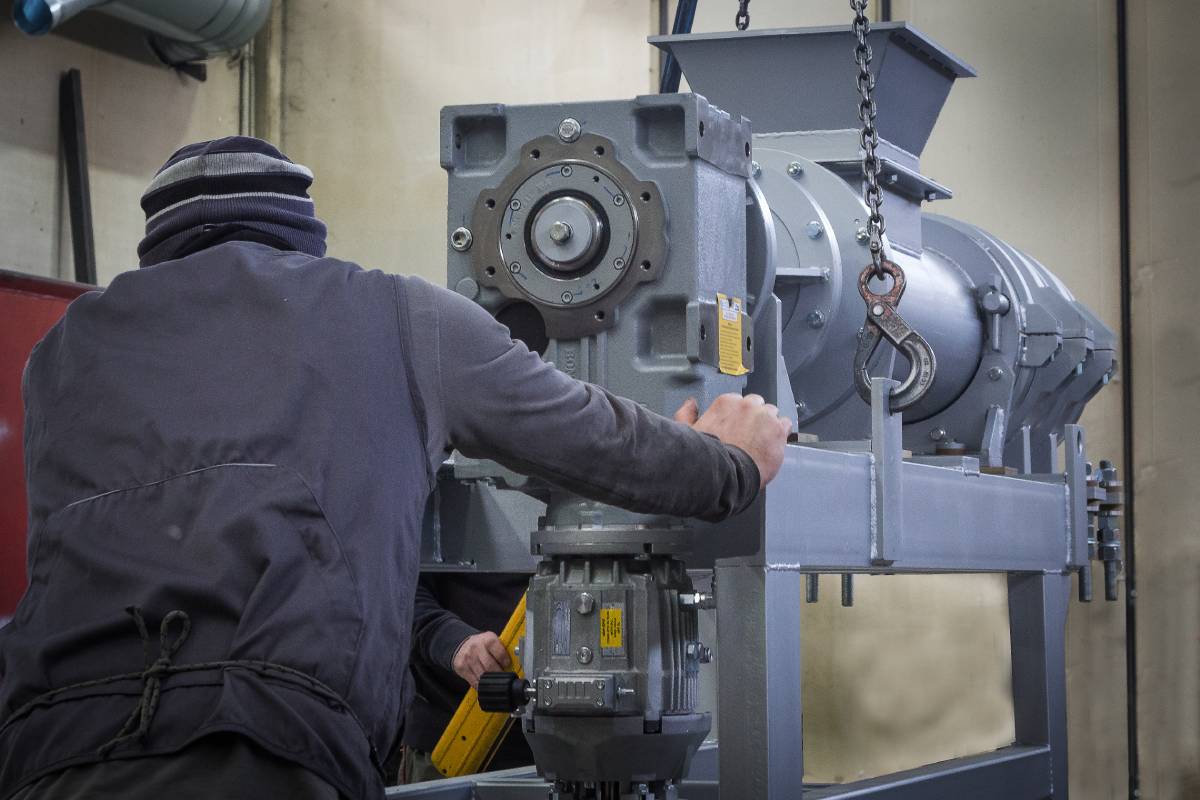

Screw batch chargers are normally installed in the back wall of the furnace through a refractory block. The mechanism is installed on a welded steel frame with four wheels which travel on rails for easy positioning and removal.

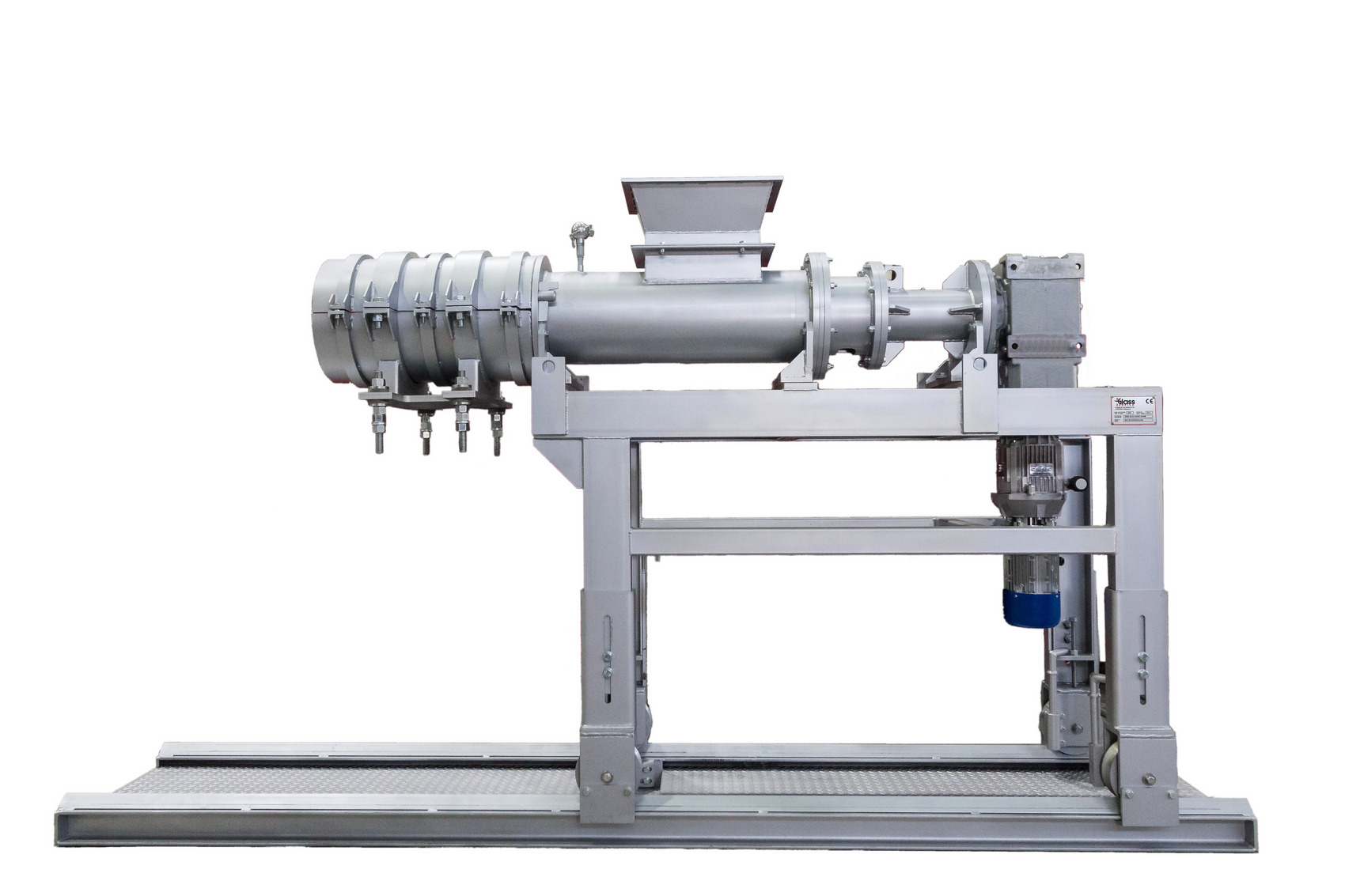

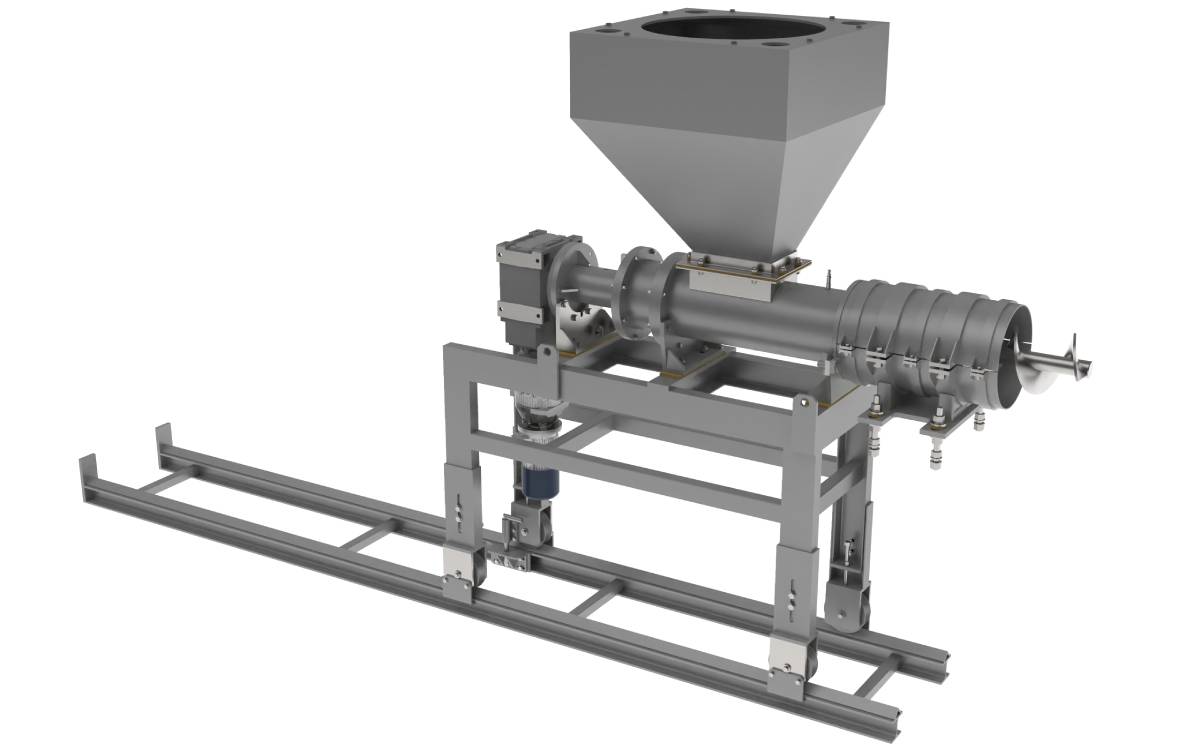

The batch charger comprises the following main components:
- Rails
- Supporting frame realized with steel profiles
- Feeding hopper

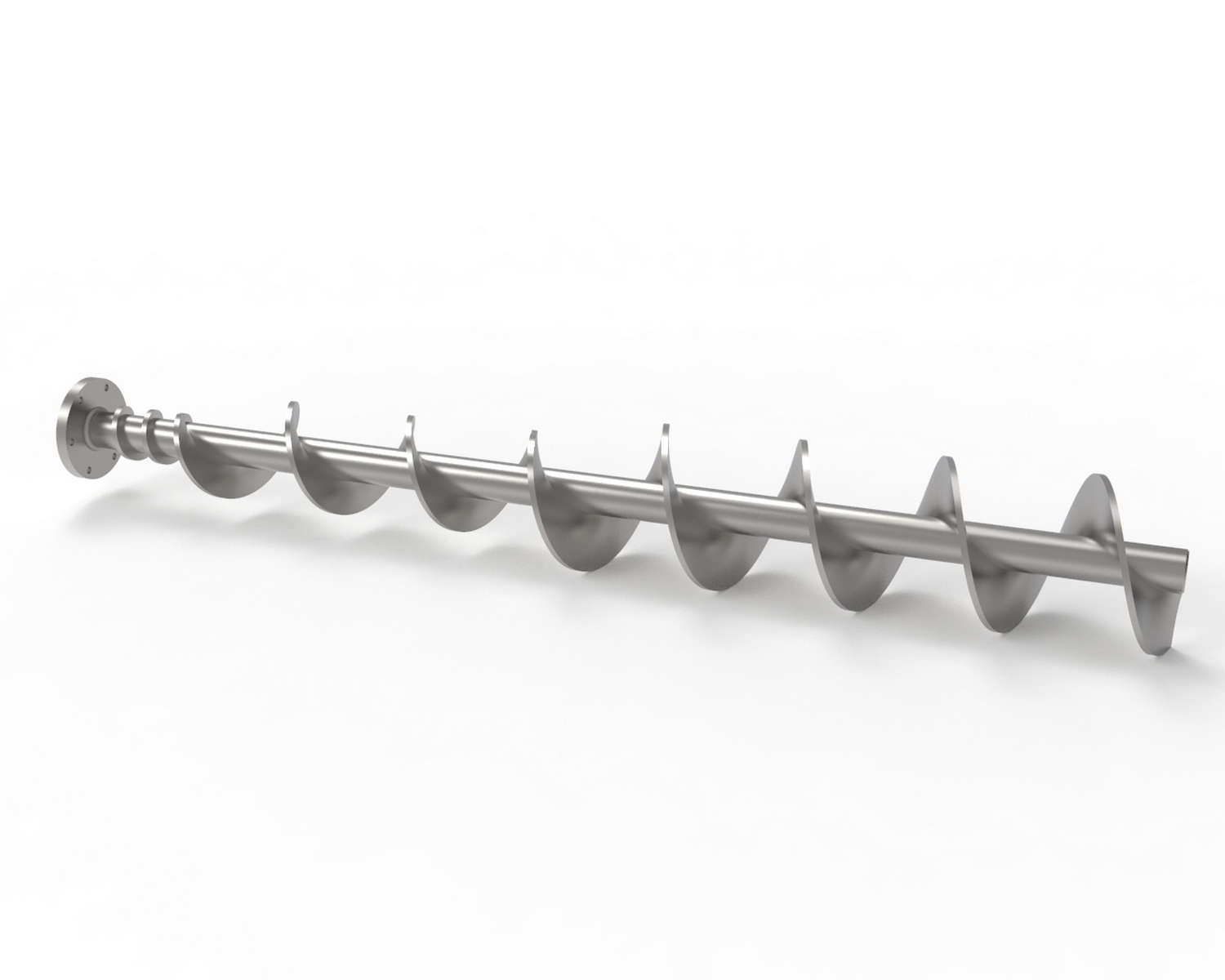

- Screw with special external coating
- Feed tube
- Refractory protection for the screw nose
- Drive system with AC servo-ventilated motor and gearbox
Batch
Loading
Batch is loaded via the feed hopper and is fed by gravity into the feed tube onto the feed screw (manufactured from steel with a special coating to minimise wear) which in turn charges the batch into the furnace.
The screw is actuated by a three-phase asyn-chronous electric motor coupled to a speed reducing gear unit. The motor is controlled by an inverter located in the main control board, driven by a 4-20mA signal from the glass level control, thus ensuring a continuous and smooth regulation of the charging rate. The drive includes large diameter conical roller bearings and a system to prevent batch damaging the bearings, etc.
Technical Features
| MODEL | INF CR R 270/1250 040 AA | |
|---|---|---|
|
Type |
|
Refractory head |
|
Feeding tube inner diameter |
mm |
270 |
|
Screw diameter |
mm |
250 |
|
Screw pitch |
mm |
150 |
|
Gear box ratio |
|
1 to 171.5 |
|
Motor speed |
rpm |
1430 |
|
Screw speed |
rpm |
8.3 |
|
Flow rate |
Kg/min |
7.5 to 37 |
|
Material being handled |
|
Glass batch - Cullet only - Glass batch & cullet |
|
Max cullet size |
mm |
25 |
|
Moisture content |
|
0,5 to 3% |
|
Main motor power |
kW |
1.5 |
|
Electric power connection |
|
3Ph + E / 400 VAC 50 Hz |
|
Dimensions (L x H x W) |
mm |
2800 x 2000 x 650 |
|
Weight |
Kg |
|
