For each burner Glass Service has developed all of the necessary accessories and can supply to the customer a complete burner solution including:

  • Air and gas valves
  • Air and gas flexible joints /connections
  • Air and gas orifice plates for flow balance and/or flow measurement
  • Thermally insulated pipework when required for preheated primary air

A range of burners sizes are available with outputs of from 145 to 1600 kW and with luminous flame pattern for the melting area (LF type) or clear (NF type) for the distributor.

Furnace equipments products

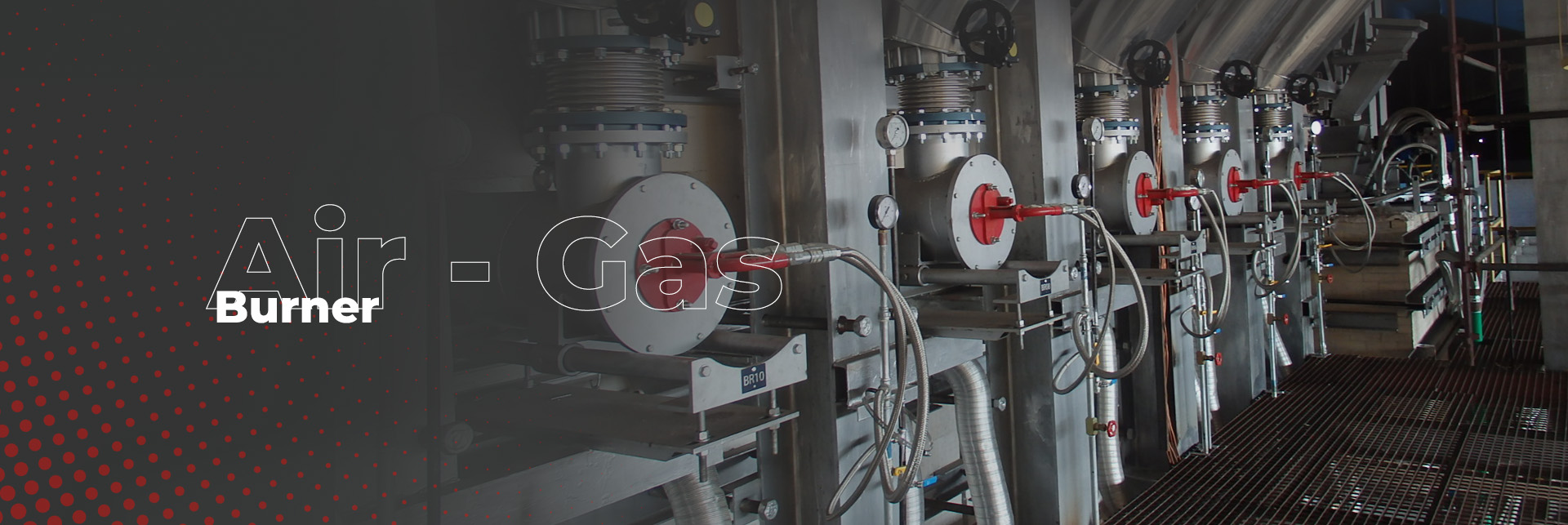

Air-Gas Burner
Development

As part of our continuous product development programme, Glass Service has developed a number of burners specifically for the glass industry as this is an important part of the melting technology in terms of control, efficiency, etc.

All of the burners have low momentum flame path without any peak temperature. This special design solution for glass melting furnace avoids the peak temperature on the furnace crown and relative rat holes. The flame radiation is concentrated in the visible spectrum range improving the energy transmitted by radiation to the melting glass and to the furnace efficiency. Burners have the following characteristics:

  • Low momentum
  • High flame radiation in the visible spectrum (500-2000 nanometres) Continuous external regulation of flame length for a correct flame path adjustment with dual impulse model
  • Easily removed for maintenance
  • Available for natural gas or LPG
  • Several sizes

USEFUL LINKS

DOWNLOAD BROCHURE

ENG
RUS

Air – Gas Burner

The Glass Service burners are available in different sizes, all of which can be operated in the distributor zone with a clear flame or with a luminous flame in the furnace melting zone. The flame length can be adjusted by changing the nozzle size. The flame shape (luminous or clear) can be changed by changing the nozzle type. The burners can be installed with the pipework from above as illustrated, or from the bottom. The burner block is an integral part of the burner design and can be supplied by Glass Service or by the customer to Glass Service drawing and specification. The air and gas orifice plate can be used for the flow control and for the pipe pressure loss balancing. A special version for temperature upto 800 °C is also available. The model name is BR – HT.

Technical Features

MODEL BR 3 BR 4 BR 5 BR 6 BR 8 BR 12
Size
Inch
3
4
5
6
8
12
Nominal power
kW
145
220
290
365
730
1600
Max. air temperature
°C
400
600
Air pressure
mbar
30
600
Gas pressure
mbar
25
30
Flame length
m
0.3 to 0.7
0.5 to 1
0.7 to 2
1 to 2.5
1.2 to 3
1.5 to 4.5
Gas inlet piping - A -
Inch
1’’
1’’ 1/4
1’’ 1/2
2’’
Air inlet piping - B -
Inch
3’’
4''
5''
6''
8''
12''
Dimension - C-
mm
168
219
244
273
324
457
Dimension - D-
mm
540
550
570
920
1020
1063
Dimension - E-
mm
250
250
260
320
370
365
Dimension - F-
mm
384
435
455
480
570
700

Dual Impulse Burner Model

The dual impulse burner model BR-DI is a new version of the BR model. This burner incorporates a special nozzle design that allows the flame length to be easily changed without any modification of the burner nozzle.
The flame length being simply changed using the manual valve installed on the burner-lance.
The dual impulse technology is only available for high luminous flame burners.

Technical Features

MODEL BR DI 5 BR DI 6 BR DI 8 BR DI 12
Size
Inch
5
6
8
12
Nominal power
kW
290
365
730
1600
Max. air temperature
°C
600
Air pressure
mbar
30
Gas pressure
mbar
30
Flame length
m
0.7 to 2
1 to 2.5
1.2 to 3
1.5 to 4.5
Gas inlet piping - A -
Inch
1'' 1/4
1'' 1/2
2''
Gas inlet piping - B -
Inch
5''
6''
8''
12''
Dimension - C-
mm
244
273
324
457
Dimension - D-
mm
750
920
1020
1063
Dimension - E-
mm
260
320
370
365
Dimension - F-
mm
455
480
570
700
